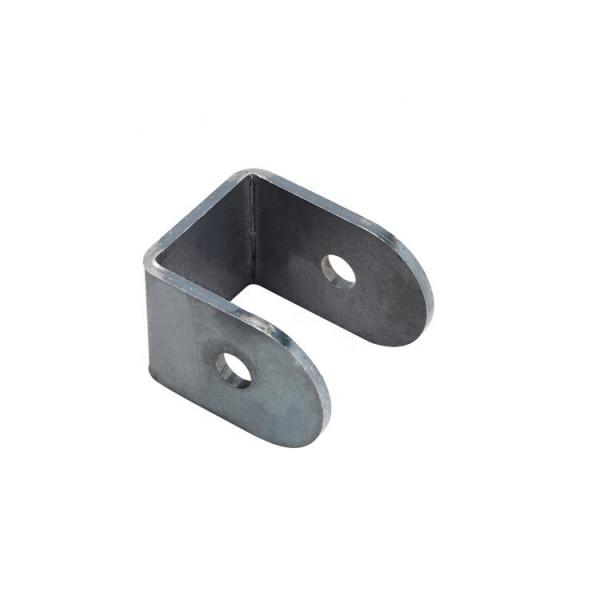

Carbon Steel Q235B Laser Cutting Bending Product Manufacturing
Sheet Metal Processing Services
Metal bending expertise you can trust
Early on, we recognized that bending was a service we had to
provide. The reality is that not many online sheet metal
fabrication services include bending in their lineup, and if they
did, it would cost an arm and a leg
As manufacturers, we know we can do better. So, we did it.
Specification
| project | Sheet metal processing Laser cutting CNC bending |
| application | appliances, automobiles, construction, capital equipment, energy,
instrumentation, medical equipment, telecommunications |
| drawing format | 3D/CAD/Dwg/IGS/STP |
| color | OEM customization |
| manage | Skilled workers and experienced staff |
| Quality Control | 100% inspection of critical dimensions |
CNC sheet metal bending
CNC press brakes are programmed offline by computer software, which
then transmits the data to the machine controls. Our software is
used to program the press to accept a flat blank of sheet metal
parts at a given distance, defined by a programmable backstop, to
determine the point at which the bend will be formed. The depth at
which the top cutter insert enters the V-block has been programmed
by assigning the tonnage to distribute the correct force, which
will define the angle that the final bend will reach, the farther
the V-blade goes into the V-block, the smaller the angle of the
final V-bend meeting. The final part can be a combination of
different bend lengths and angles generated by the CNC program,
positioning the sheet metal part blank at the defined positions and
programmed angles
The maximum length of sheet metal parts that can be folded is
determined by the length of the CNC bending bed, and the thickness
of the material, along with other factors such as material tensile
strength and the number of available tonnages, is a key factor in
the machine that forms sheet metal. The larger the bottom V-block
opening, the larger the sheet metal gauge that can bend the same
tonnage. However, as the V-block opening increases, the inner
radius of the bend on the sheet metal part also increases, and the
minimum folded length also increases.
Product display
