OEM Sheet Metal Welding Fabrication Concrete Slab Architectural
Embedded Parts Cast in Slab
Embedded project
Embedded Metal - is a welded structure embedded in concrete or
reinforced concrete elements, made of structural steel. Can be
channel steel, angle steel, various plates, flat steel or section
steel
Production of embedded metals made of various steels
Embedded Metal - is a welded structure embedded in concrete or
reinforced concrete elements, made of structural steel. They are
used to connect monolithic and prefab metal structures to each
other or to other elements of buildings and structures
The embedded metal is either cold forged or welded using steel
plates or sections. The latter includes angle steel, channel steel
and various plates, flat steel or round steel
Embedded parts
Embedded parts are pre-installed (embedded) components in concealed
works. They are structural members placed when the structure is
poured for the lap joint of the superstructure. It is convenient to
install and fix the foundation of external engineering equipment.
Most inserts are made of metal
Production Process
Processing according to the drawing→measurement and
positioning→bracket→place bolts, embedded parts and temporary
fixation→retest and final fixation
Folding measurement positioning
Put a relative elevation point on the fixed support pile. The
bottom should be welded reliably and completely separated from the
formwork fixing frame and the reinforcing steel fixing frame. The
fixing frame should have sufficient rigidity and stability
Folding Bolts and Temporary Fixing
After the fixed frame is supported, the bolts should be installed
according to the positioning line to fix the center, and then the
elevation should be adjusted, and temporary reinforcement should be
carried out according to the requirements of the plan
Folding retest and final fixation
After the bolts and embedded parts are placed, the surveyor will
adjust and check the bolts and embedded parts again. After checking
that the specification requirements are met, the lower part of the
bolt is welded firmly to the fixing frame. At the same time, the
bolt fixing frame is reinforced by welding shears in the vertical
and horizontal directions
product description
| model | OEM Embedded Parts |
| product name | Structural Inserts |
| application | construction, various equipment, construction, various equipment |
| color | silver / grey |
| surface treatment | Electroplating, polishing (according to customer requirements) |
| Type of manufacture | CNC machining, bending, welding, etc. |

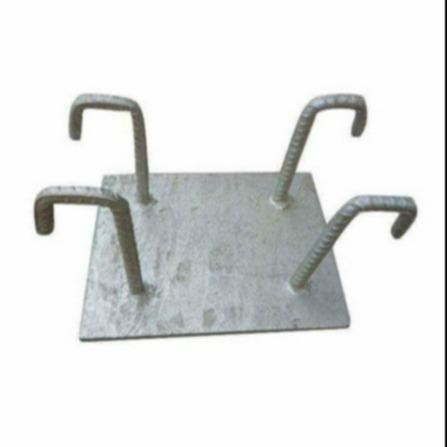

Product Image
